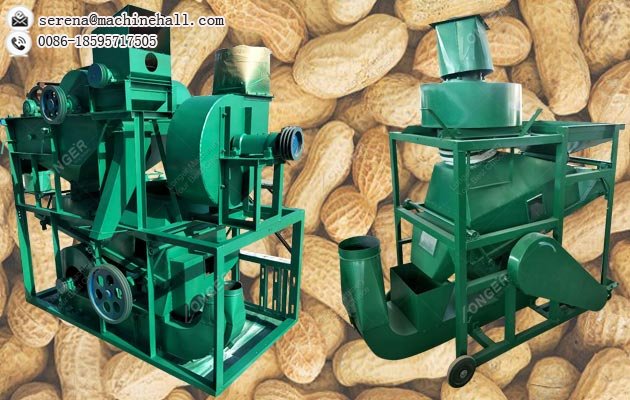

These peanut processing equipment is composed of peanut shelling machine and stone removing machine. It is a necessary equipment for peanut shelling process, so it can be widely used in farm and peanut processing factory. These machines have the advantages of long servie life, easy operation, easy move, good quality, perfect shelling effect and so on.
Introduction to the components of the machine:

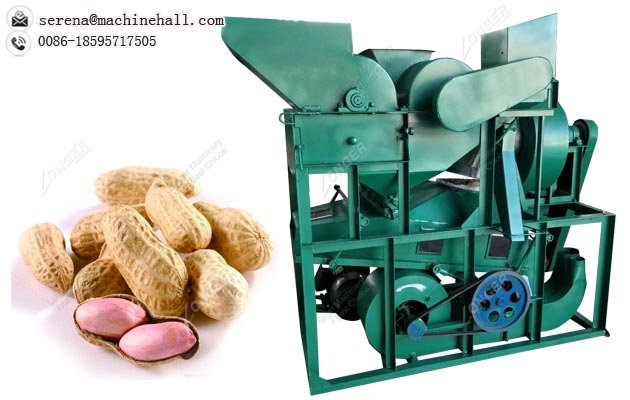

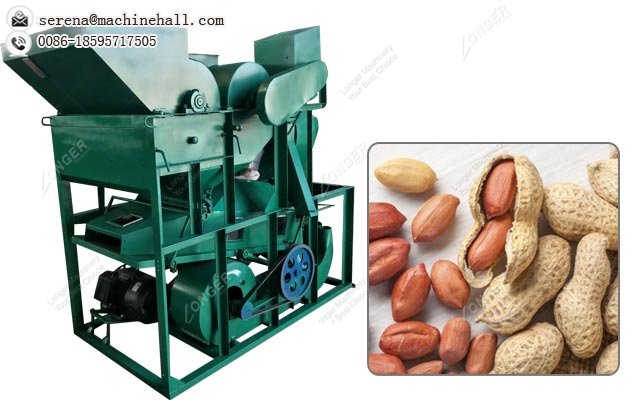

1. Automatic Peanut Shelling Machine
Peanut sheller generally consists of screw bar, bar, concave, fan.
The working principle is that the electric shock drives the normal work of the peanut shelling machine, the groundnuts are poured into the feeding bucket evenly, and the groundnut shell is broken under the repeated beating, friction and collision of the rotor. Broken groundnut shells and groundnuts in the rotor force into a certain aperture of the sieve, after sorting the small skin through a small aperture sieve the second shelling, the final groundnut shell blowing crooked machine, the groundnut through the screen to achieve the purpose of clearance.

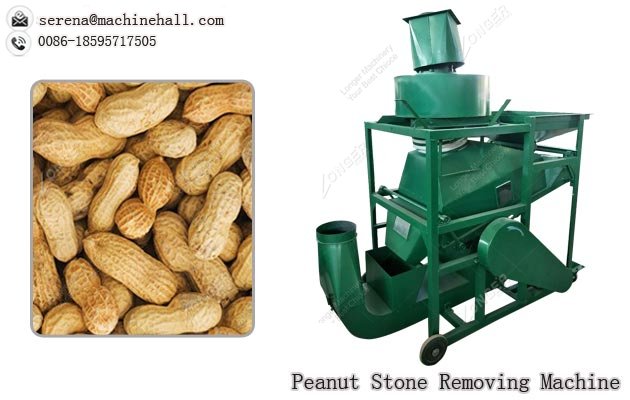

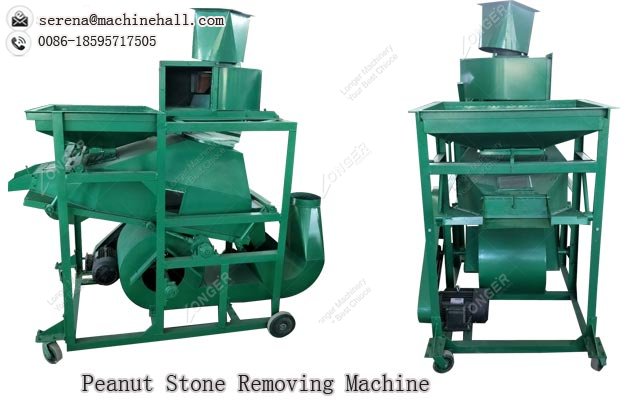

2. Peanut Stone Removieng Machine
The stone cleaning machine is mainly on peanut grading, concentrated cleaning and removing sand and stone. Peanut machine use proportion principle to make the material and stone separation, has smooth operation, small vibration, low noise, no pollution, good effect to characteristics of stone.
Using Method of Peanut Destoner
1. the air delivery tongue should be adjusted according to the situation of peanuts. The upward lifting will reduce the speed of fruit flow. The downward pressure will increase the fruit volume to the fruit blender, and the two loading of sheller is also the same, which is related to the speed of fruit rubbing.
2. if in peanut and peanut stalk of grass too much, peanut machine at work after a period of time, in the flow direction of fruit bucket, sieve bottom will be formed to jam grass ball peanut fruit bucket flow stream, please clear the timing or peanut fruit will help screen flow from both sides to the ground.
3. before starting the operation, we should first spread the flower and fruit on the bottom of the screen, and put some small stones on the bottom of the stone outlet to press the screen bottom. Otherwise, if the wind is too long, the peanuts will blow out the screen surface and start running for 2 minutes after starting.
4. after the normal operation of the machine, the impurities, stones and other debris of the stone mouth should not be put too clean, leaving a part of the sieve bottom, otherwise the peanuts will blow out the screen.
The maintenance methods of peanut machinery:
1. after the machine is finished, the parts of each machine, the parts of the antirust tool are removed, then the hood is opened, and the various parts of the weeds are made on the hair bar.
2. maintenance after one week. Need for the universal joint, bearing and filling butter, check and supplement other lubricating points. Check the wear of the belt, if the wear is serious, it should be replaced in time.
Quarterly maintenance. Each operation is done, not only to clean up all the machines, but the V belt is relaxed. Check the operation of the replacement part of the bearing and add butter.
