Sesame|Wheat Cleaning and Drying Processing Line

  • Min Order:  1 set
  • Supply Quantity:  200 sets per month
  • Loading Port:  Shanghai/Qingdao/Tianjin Port
  • Description:  The processing line can be used for both dual-use, high automation, convenient operation, and can be used to clean and dry sesame and wheat.
Sesame Wheat Cleaning Line
Sesame or wheat cleaning drying line is mainly composed of sesame water tank and dryer, with feeding, drainage, rotation, sand discharge, ventilation and other auxiliary devices. The part of the sesame cleaning water tank is mainly welded by steel plate, and the horizontal horizontal lie down below. The end of the water tank is connected with the base of the sling, and the other end is equipped with a rotating gear box, and the other end has a blow-down device. Use the washing method to remove the dirt on the surface of sesame seeds and sesame seeds. After the sesame has been washed, it will be left to dry. The machine can be used for both dual-use, high automation, convenient operation, and can be used to clean sesame and wheat.

Components of the sesame cleaning drying equipment:
1. Pneumatic elevator: Pneumatic elevator adopts air lift method to carry the sesame seeds, good lifting effect and no damage to sesame seeds..
2. Washing machine: The principle of helical blade stirrer is adopted in this machine, remove dust, sand, sesame nails with automatic cleaning, automatic separation, automatic feeding, wind and other advantages, characteristics of sesame clean, no pollution, simple operation of equipment etc.
It is the first choice for sesame processing, sesame baking, sesame oil extraction industry.
3. Centrifugal hydro-extractor: It is also named dewater machine, it uses the centrifugal force generated by the rotating cone drum to remove the water from the cleaned sesame seeds.
4. Roasting machine: The sesame seeds drying machine can roast the sesame seeds evenly and uniformly in order to remove the water still contained in the sesame seeds after dehydration process.
5. Cooling machine: This cooling machine has function of storing and cooling the sesame seeds, reducing the processing time.

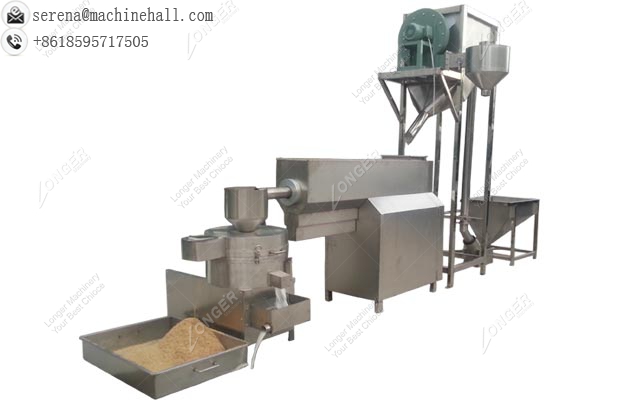

Sesame Cleaning Drying Equipment

Sesame Cleaning Drying Processing Machine


Name Dimension(mm) Power
(kw)
Weight
(kg)
Screw Elevator 2000*600*2000 0.75 150
Continuous Cleaning
Machine
2300*500*1350 0.75 200
Drying Machine 1000*800*650 1.5 100
Elevator 3000*600*3000 0.75 220
Sesame Roaster Machine 3500*1400*2600 75 3000
Pneumatic Conveyor   1.5 250
Cooling Storage Hopper 1500*1000*2000 1.5 250
Combined Grinding
Machine
1000*400*900 22 270
Storaging Tank 300 L   150
Mixing Tank 300 L 2.2 300
Vacuum Degassing Tank 300 L 2.2 300
Paste Pump   1.5*2 100*2
Other parts
