Automatic Chocolate Chip Depositing Making Machine Factory Price
Min Order:1 set
Supply Quantity:200 sets per month
Loading Port:Shanghai/Qingdao/Tianjin Port
Description:The automatic chocolate chip depositing machine is a special equipment for producing small granular chocolate products, which has wide application and large production capacity.

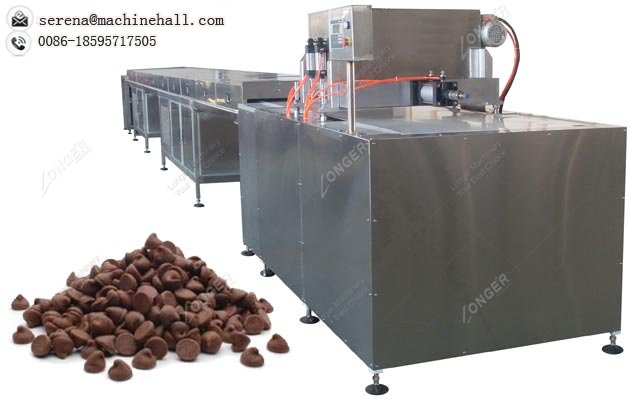

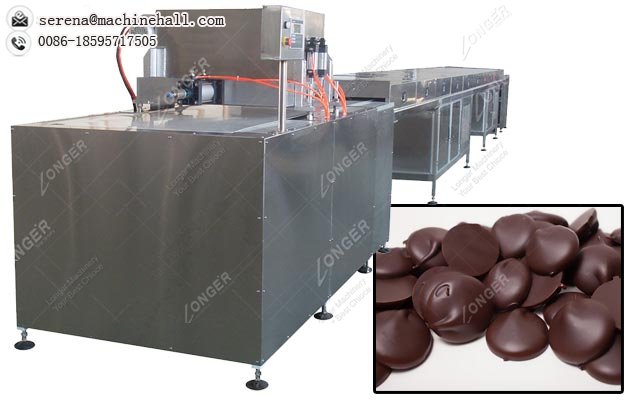

Description of Automatic Chocolate Chips Depositing Machine
The chocolate chip depositor machine is a device for producing small granular chocolate. The equipment can not only produce droplet-like chocolate chips, but also button-like chips, particle size can be adjusted between 2-18 mm. These are the ideal industrial chocolate types used to decorate or melt on other products, especially cookies and ice cream. We supply the machine to every customer at factory price, welcome your inquiry.
Advantages of Automatic Chocolate Chip Making Machine:
The PLC touch-screen control system is specially designed for easy operation.
This universal chocolate depositor machine can meet the production requirements of various new products of different shapes and weights by replacing the distribution plate on the depositing head.
The width of the belt is optional from 400 to 1200mm.
The material of the line which touch with the chocolate is made in stainless steel or aluminium alloy except the convey belt is made in PU. The insulation board can be also stainless steel.
The whole process is automatic, including deposition, template vibration, cooling, demoulding, conveying and plate heating.
Factory price, low cost.
Automatic Chocolate Chips Depositing Process:

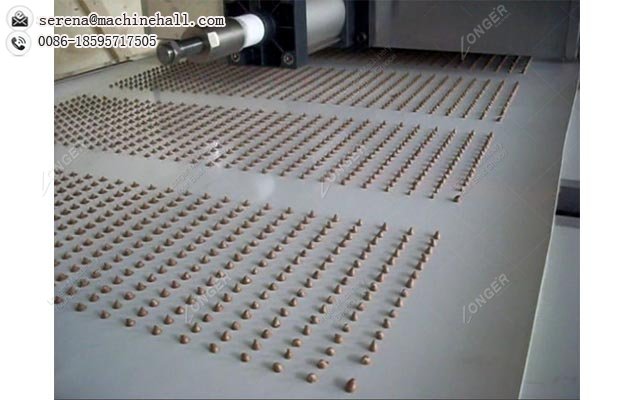

During the dripping process, the chocolate slurry is dripped to the belt through a plurality of densely dispersed discharge holes, and then cooled to form. With a certain amount of chocolate paste entering the chamber, the more the outlet holes, the less the slurry dropping from each outlet hole, thus forming a smaller granular chocolate chips. By setting the number and distribution of discharge holes reasonably and pouring more than one particle at a time, the efficiency is very high and the particles are uniform. The automatic chocolate chip making machine can realize the improvement of the distribution plate structure on the existing depositing machine, and the improvement cost is low.
Automatic Chocolate Chips Making Process Factory Video:
